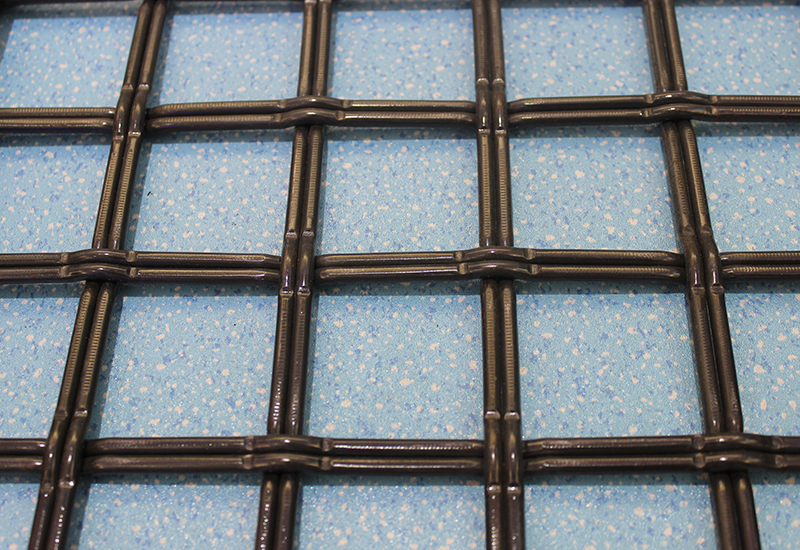

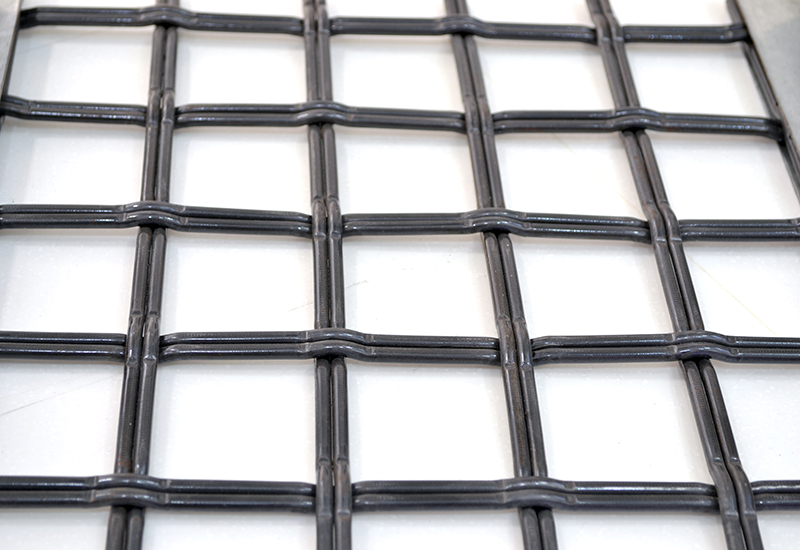

Double-wire Woven Wire Screen
Double-wire woven wire screen is ideal for heavy impact applications on top screen decks thanks to its high tensile strength and ductility. This woven wire screen can withstand up to 4 times more impact force than heavier single-strand woven screen. With higher opening area than perforated plate screen, double-wire woven screen can deliver more material throughput by up to 50%.

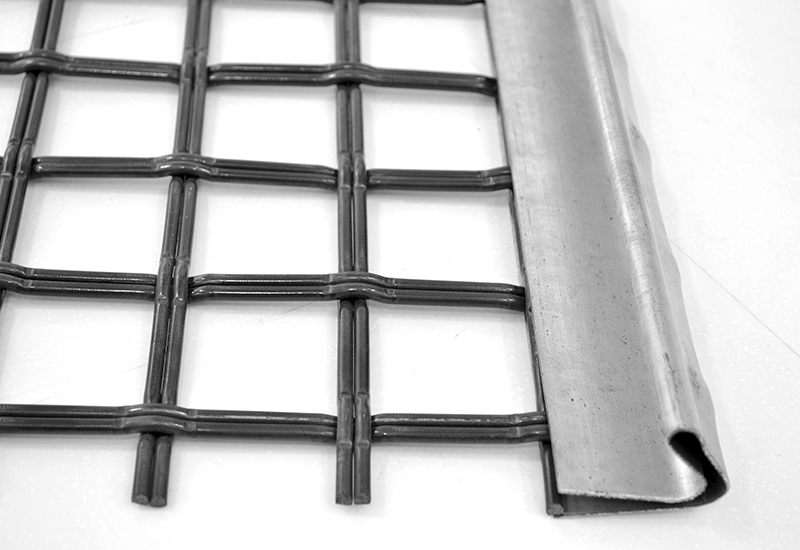

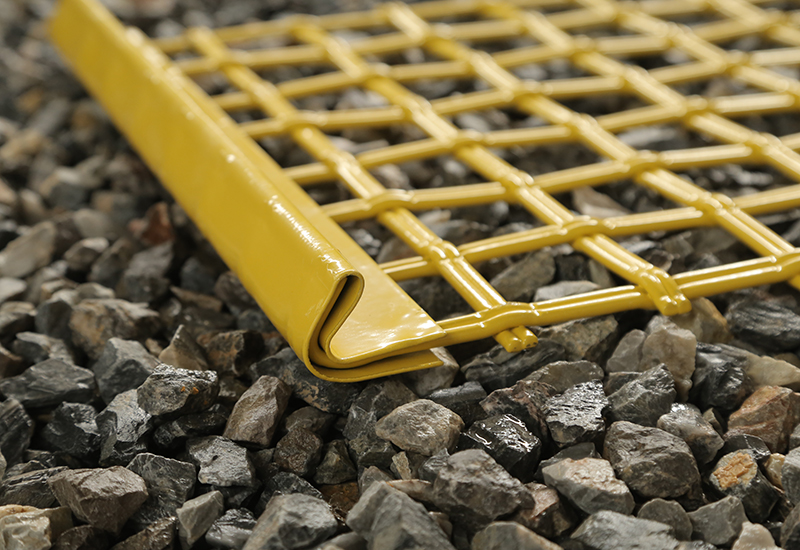

Type of Hook Strips Specifications-
Specifications
- Materials available
- patented wire (65mn manganese steel wire), stainless steel, medium carbon steel, high carbon steel
- Opening size
- 25.4-200mm
- Wire
- 3.05-19.05mm
- Screen size
- Max. 3m width

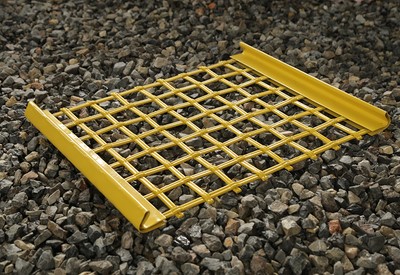

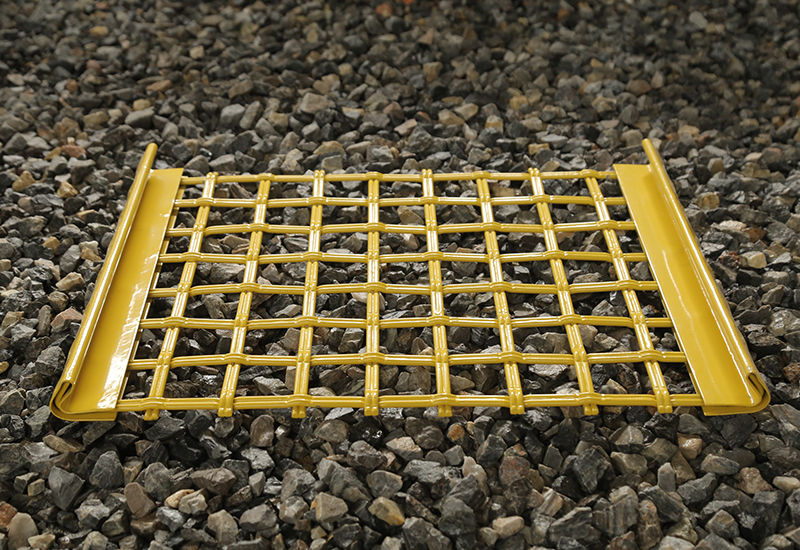

Gallery
Red Star has been supplying high quality screening surfaces to aggregate processing, recycling screening, quarrying and mining industries since its foundation in 1989. Today, we specialize in the design and manufacture of industrial screening media with tailor-made screening solution for customer’s specific needs. We are able to offer braided wire meshes, or plastic screen meshes such as polyurethane screen panels and screening accessories. Whether you are a screening equipment manufacturer looking for qualified wire meshes for your product or an end user looking for replacement screens to refurbish your older existing screening and classification equipment, Red Star can get the job done efficiently.
