Slotted Screen

Slotted Screen
Inquiry

Slotted screen has a higher open area than conventional square opening wire mesh, resulting in an increased throughput. When compared to rectangular opening wire mesh, slotted screen can effectively avoid deformation caused by undesirable factors, while delivering greater wear and impact resistance. The additional crimps generate a vibration action helping to reduce blinding, and create tumbling effect for better fines removal. The slotted mesh is ideal for complete screening of materials by slowing material down to offer more time for material to pass over the openings.

Red Star is able to offer customer-specific woven wire screens to cater to your individual applications needs.

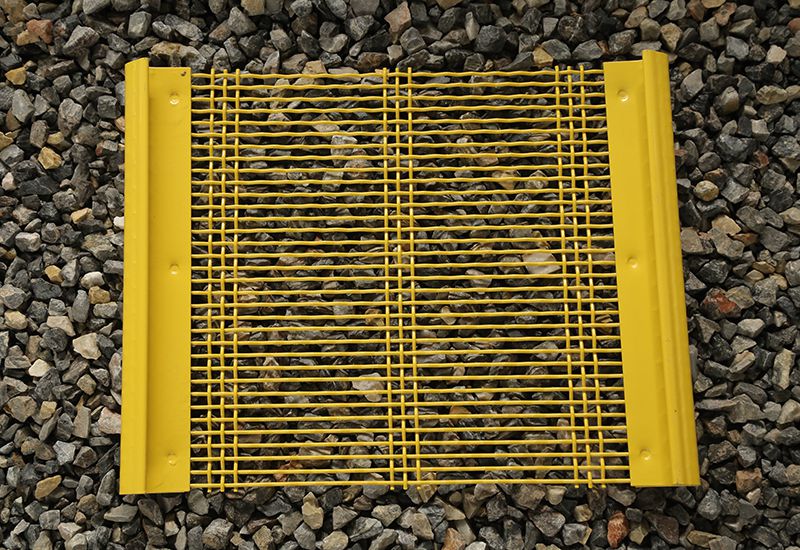

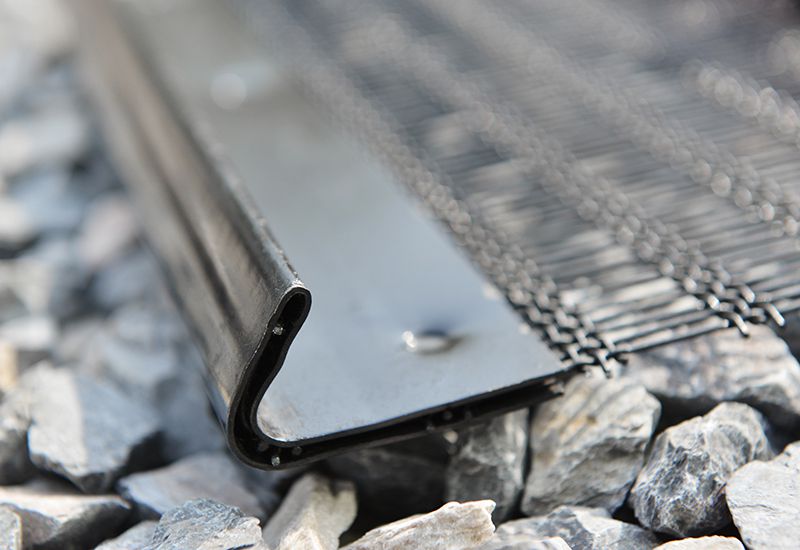

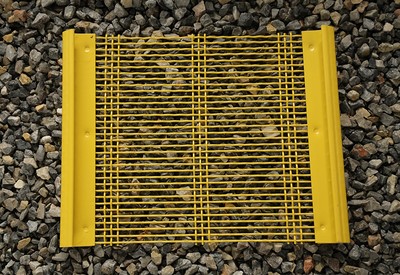

Type of Hook Strips Specifications

    Specifications
    1. Materials available
    2. patented wire (65mn manganese steel wire), stainless steel, medium carbon steel, high carbon steel
    1. Opening size
    2. 0.9×31.75-190.5×152.4mm
    1. Wire
    2. 0.5-19.05mm
    1. Screen size
    2. Max.3m width

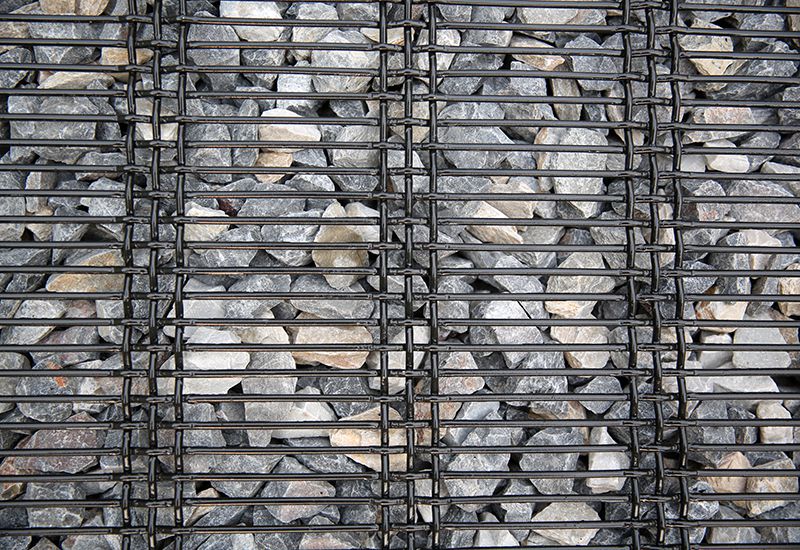

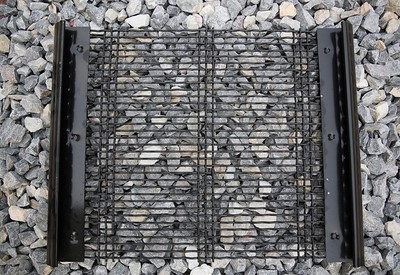

Slotted Screens with Straight Wires
Slotted Screens with Straight Wires

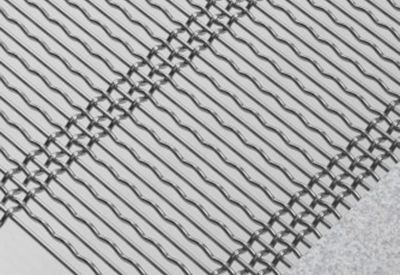

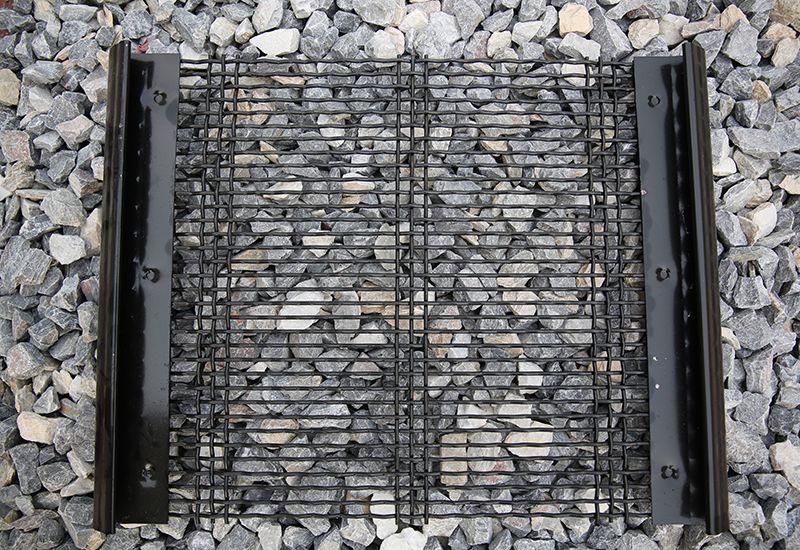

Slotted Screens with Alternating Crimped & Straight Wires
Slotted Screens with Alternating Crimped & Straight Wires

Gallery

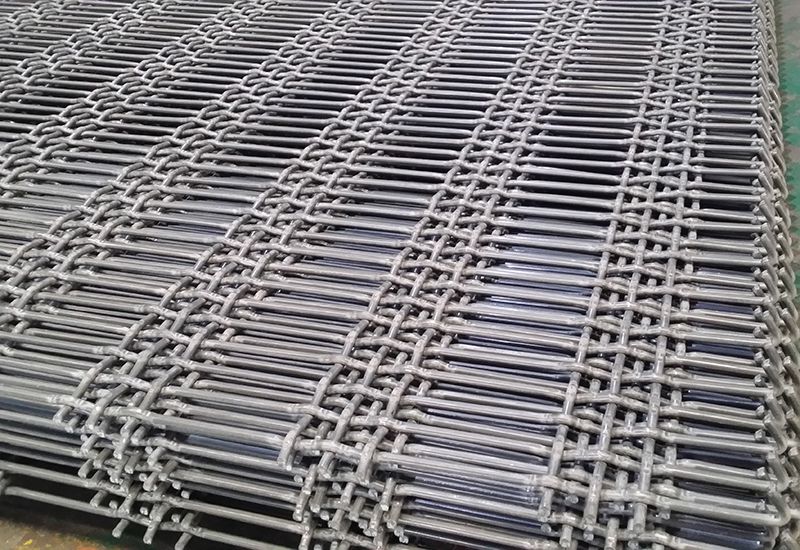

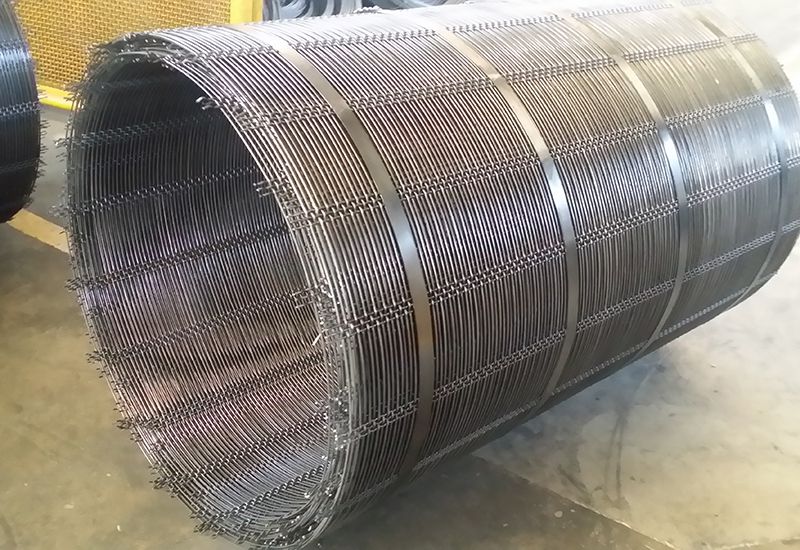

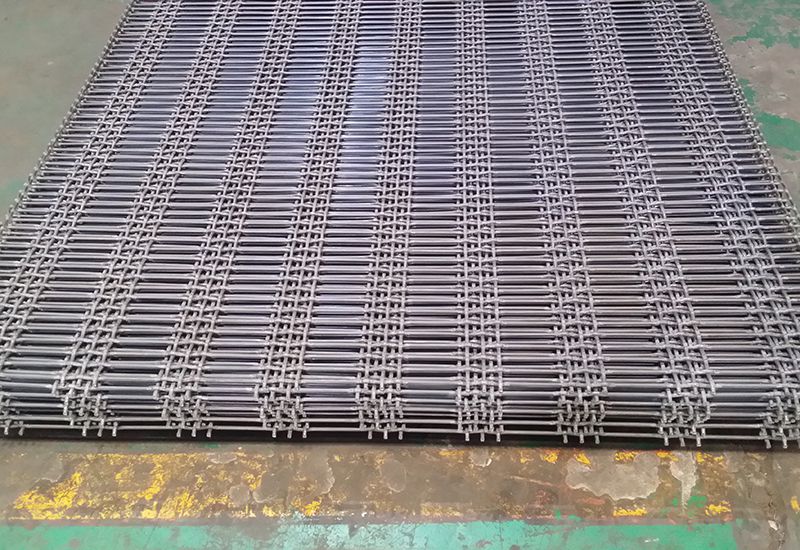

Slotted Screen
Slotted Screen
Slotted Screen
Slotted Screen
Slotted Screen
Slotted Screen
Slotted Screen
Slotted Screen
Slotted Screen
Inquiry
Red Star has been supplying high quality screening surfaces to aggregate processing, recycling screening, quarrying and mining industries since its foundation in 1989. Today, we specialize in the design and manufacture of industrial screening media with tailor-made screening solution for customer’s specific needs. We are able to offer braided wire meshes, or plastic screen meshes such as polyurethane screen panels and screening accessories. Whether you are a screening equipment manufacturer looking for qualified wire meshes for your product or an end user looking for replacement screens to refurbish your older existing screening and classification equipment, Red Star can get the job done efficiently.
