Square Opening Woven Wire Mesh

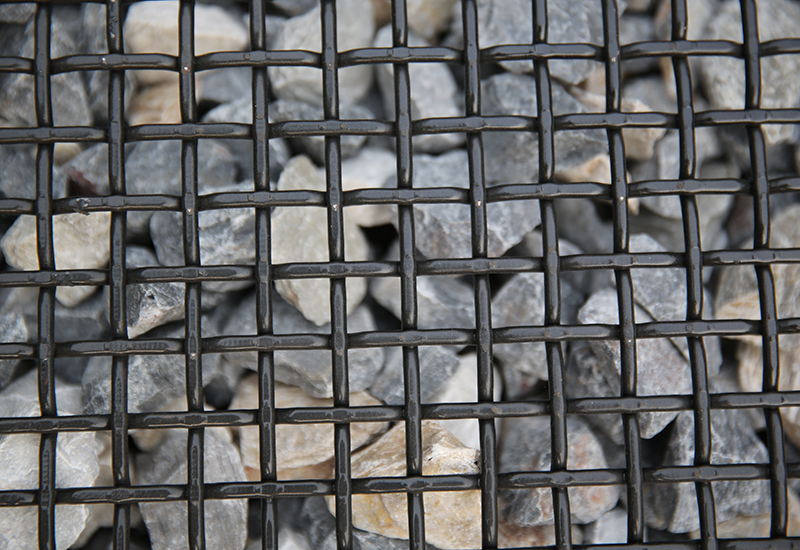

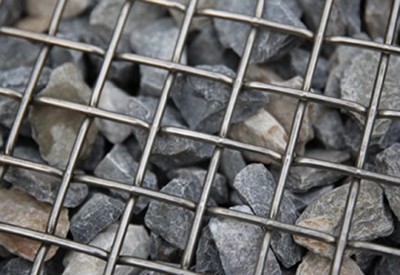

Square Opening Woven Wire Mesh
Inquiry

Square opening wire mesh is a most commonly used screening media by reason of its highly precise mesh apertures. Red Star’s woven wire screen is offered with the most precision mesh aperture within the global industry. Our square wire mesh features an aperture deviation of only ±3%, which is far superior to international standards of DIN47833 (Europe) and ASTM 2016-15 (North America).

We are able to deliver options of woven wire weave styles to perfectly suit your filtration and separation applications, such as plain weave (double crimp), lock crimp weave, flat top weave and intercrimp weave.

In particular, we at Red Star have thousands of molds coupled with our strong mold designing and molding capabilities, we are large enough to meet customers' needs relating to customizing woven wire screen with wire diameter ranging between 0.1mm and 19.05mm, no matter whether it is construction of a stainless steel fine wire mesh screen with aperture size less than 1mm, or a heavy-duty wire mesh screen with aperture size of up to 200mm, as well as everything in between.

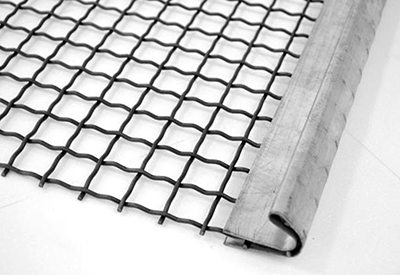

Type of Hook Strips Specifications
+

    Specifications
    1. Materials available
    2. patented wire (65mn manganese steel wire), stainless steel, medium carbon steel, high carbon steel
    1. Opening size
    2. 1.25-200mm
    1. Wire
    2. 0.8-19.05mm
    1. Screen size
    2. Max.3m width

Weave Styles

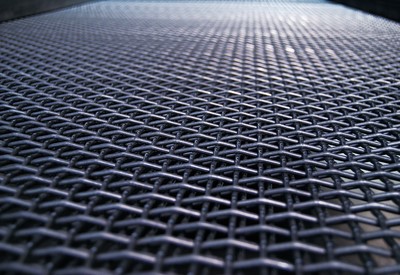

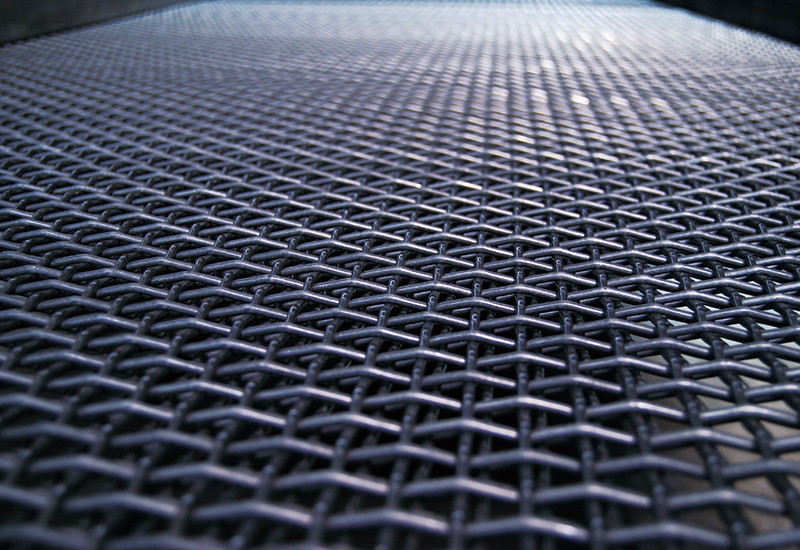

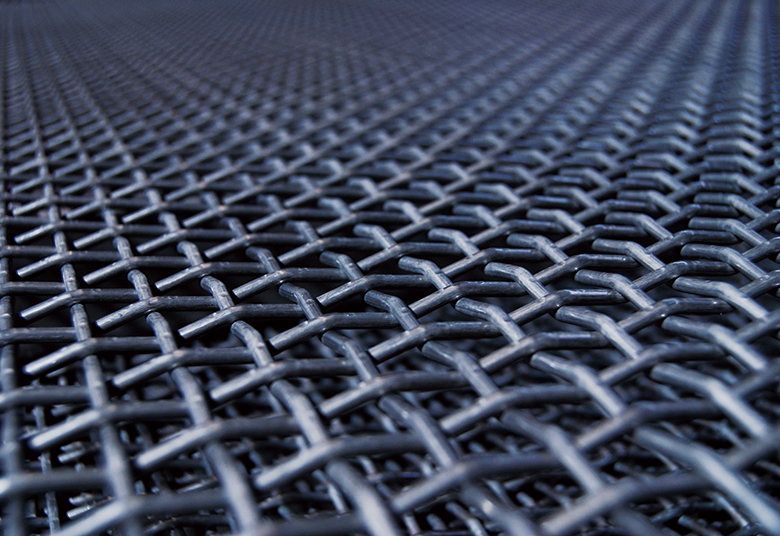

Plain Weave/ Double Crimp Woven Wire

The advantages of plain weave woven wire mesh are simplicity and high weave precision. This type of weave is used where the opening is relatively small, can guarantee achieving high efficiency and sustained performance screening.

Plain Weave/ Double Crimp Woven Wire
Lock Crimp Woven Wire

In the lock crimp weave type, weft and warp wires pass each other and get locked together at the point of intersection. The crimping is done to lock the wires to prevent from abrasion caused by wire movements. This weave type works perfectly for screening applications where the aperture size and wire diameter are relatively large.

Lock Crimp Woven Wire
Flat Top Woven Wire

The flat top weave offers a smooth surface for easier material flow. This type of woven wire provides long abrasion resistance lifetime since there are no obstacles on the smooth surface side to strike the material during its flowing.

Flat Top Woven Wire Flat Top Woven Wire
Flat Top Woven Wire
Intercrimp Woven Wire

Intermediate crimp, or simply intercrimp has extra crimps in warp and weft wires between the intersections, it is primarily used where larger aperture size is required while the wire diameter remains stable. The rigidity and stability are greater than common woven wire screen.
Thanks to its feature of large open area, the intercrimp woven wire screen is ideally suited for use in applications with high throughput.

Intercrimp Woven Wire

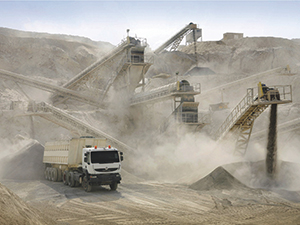

Applications

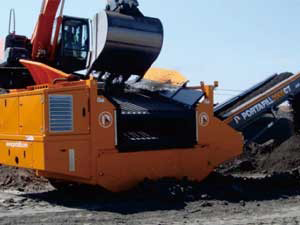

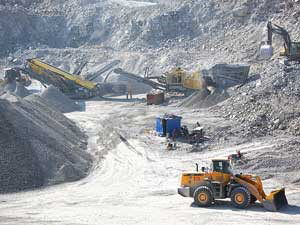

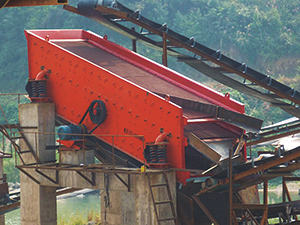

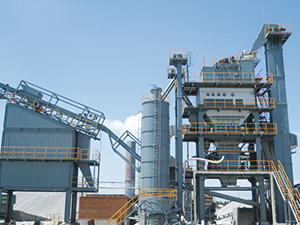

Square opening wire mesh is mainly used as screen mesh in a huge variety of industries, such as mining screen, quarry screen, screen deck, stone crusher screen, trommel screen, vibrating screen, and screen meshes used in road construction equipment or asphalt mixing equipment, as well as more sectors including chemical, pharmacy, safety & protection, construction, etc.

Applications
Applications
Applications
Applications
Applications
Inquiry
Red Star has been supplying high quality screening surfaces to aggregate processing, recycling screening, quarrying and mining industries since its foundation in 1989. Today, we specialize in the design and manufacture of industrial screening media with tailor-made screening solution for customer’s specific needs. We are able to offer braided wire meshes, or plastic screen meshes such as polyurethane screen panels and screening accessories. Whether you are a screening equipment manufacturer looking for qualified wire meshes for your product or an end user looking for replacement screens to refurbish your older existing screening and classification equipment, Red Star can get the job done efficiently.
